Industrial Keyboards & Trackballs

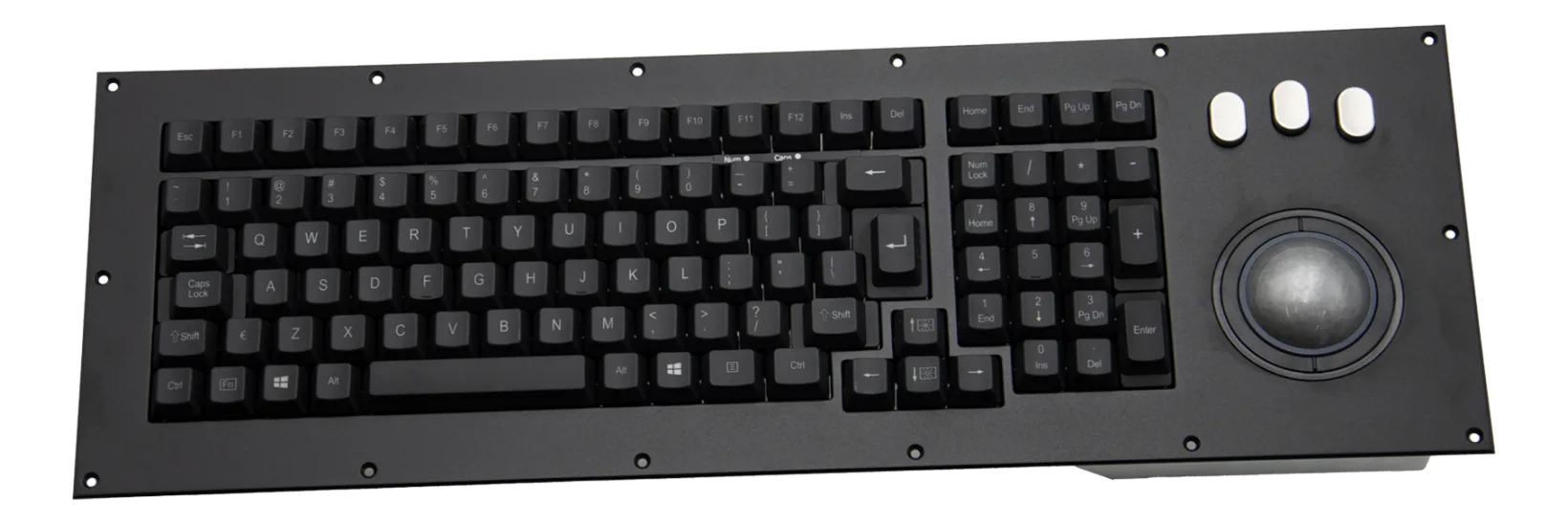

MKBL107N0001USBRugged keyboard with X50 trackball, designed for MIL-STD-810 and MIL-STD-461
- Manufacturer
- NSI
MKBL107N0001USB is the US Qwerty layout version of the MKBL107 series: a full travel keyboard with integrated trackball, intended for military, naval and vehicle-mount command stations where the input must remain usable even in low light.
The backlight is powered by the USB port, not by a dedicated line, and can alternatively be driven by a customer PWM signal; the USB output runs through an Amphenol circular connector, while the trackball works with an optical tracking engine and a metallic grey epoxy resin ball.
Other layouts are available in the same family: MKBL107N0046USB (Swedish Qwerty) and MKBL107N0090USB (Turkish Qwerty).
At a glance
- 10,000,000 actuations per key
- Trackball switch rated 1,000,000 cycles
- Backlight adjustment from Fn key
- Panel mount version available
- Weight 1.1 kg
Technical specifications
| Keyboard & pointing device | Backlit, waterproof, full travel switches with excellent tactile feedback1,000,000 cycles10,000,000 actuationsFull travel backlit keysHigh reliability key switch mechanismsIntegrated X50 trackballMetallic greyOptical tracking technologyPOM / sprayed black and laser etchedRubber dome / carbon pillThe backlight intensity can be controlled by using the “Fn“ key + the UP / DOWN arrow keys.The default backlighting system is powered by the USB port |
|---|---|
| Connectors | 10-way JST connector, part no. PH, CR or KR types (e.g. PHR-10)10-way JST, Vertical header, part no. B10B-PH-SM4-TB |
| Supply voltage | 100mA (nonbacklit), 250mA (typical), 400mA (backlit maximum) |
|---|
| Weight | 1.1 kg |
|---|---|
| Mounting | Panel Mount(optional) |
| IP rating | Full IP65 |
|---|---|
| Operating temperature | -45–70 °C |
| Certifications | MIL-STD-461MIL-STD-810 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
