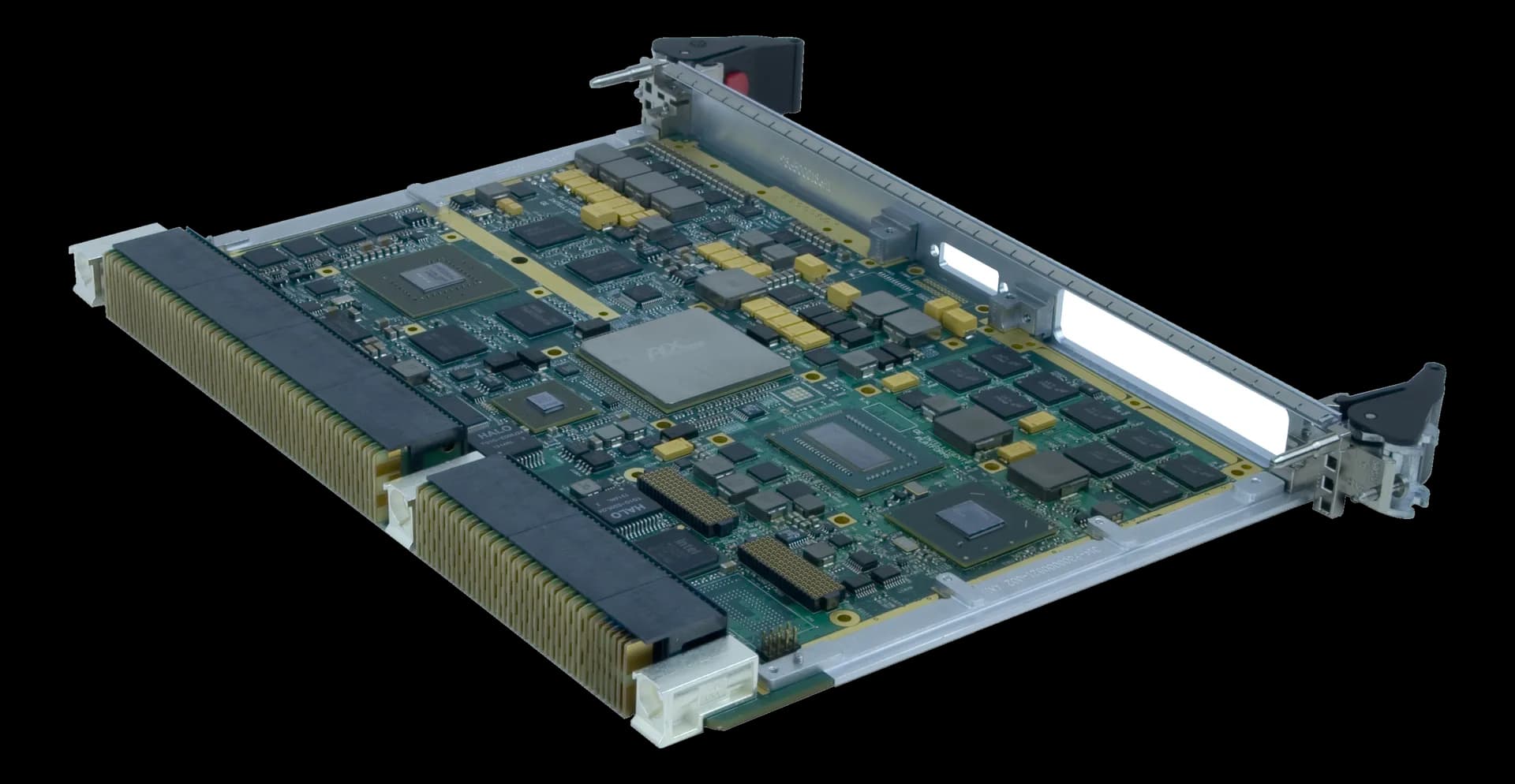

IPN2526U VPX GPGPU board with quad-core Core i7 and NVIDIA GM107 GPU
- Manufacturer
IPN252 is an Abaco Systems GPGPU compute board in 6U VPX form factor, compliant with VITA 46 and intended for graphics and signal processing on embedded systems.
The third generation quad-core Intel Core i7 processor works on an Intel QM77 chipset with a maximum of 16 GB of DDR3 SDRAM with ECC, alongside the NVIDIA GM107 GPU; the data plane is 10GigE.
Linux and Windows are supported, with the CUDA, OpenCL and OpenGL environments for acceleration on the GPU.
At a glance
- Processor: 3rd Gen. Intel Core i7 quad-core @ 2.1 GHz, NVIDIA GM107 640-core GPU
- CPU frequency: 2.1 GHz
- CPU cores: 4
- Memory: Up to 16 GB DDR3 SDRAM with ECC
- ECC support: Yes
Technical specifications
| Processor | 3rd Gen. Intel Core i7 quad-core @ 2.1 GHz, NVIDIA GM107 640-core GPU |
|---|---|
| CPU frequency | 2.1 GHz |
| CPU cores | 4 |
| Memory | Up to 16 GB DDR3 SDRAM with ECC |
|---|---|
| ECC support | Yes |
| RAM type | DDR3 |
| Maximum RAM | 16 GB |
| Ethernet ports | 10 GigE, 1000BaseT, 1000BaseT/1000BaseBX |
|---|---|
| Serial interfaces | 2 |
| Board function | GPU / Graphics |
|---|---|
| Form factor | 6U double Eurocard |
| Architecture standard | VPX (VITA 46)OpenVPX VITA 65 |
| Backplane planes | PCIe(expansion)10GigE(data) |
| AMC slot configuration | 1x XMC |
| Bus interface | Intel QM77 |
| Rugged / conformal coating | Level 1-5 Air, Conduction Cooled |
|---|
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
