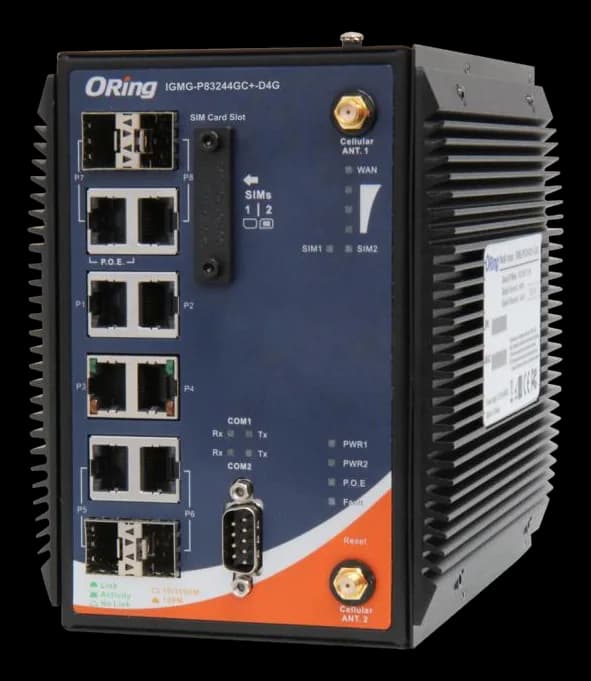

IGMG-P83244GC+-D4G4G M2M gateway with built-in Gigabit switch and dual SIM
- Manufacturer
- Configurations
- 1 available configurations
IGMG-P83244GC+-D4G is a DIN-rail M2M gateway for plants that must stay reachable where the wired network does not arrive: it combines the field switch and the 4G LTE link in a single unit. The IP30 enclosure works from -40 to 75 °C and meets the IEC 61850-3 requirements for electrical substations.
The built-in switch carries four 10/100/1000Base-T(X) ports and four Gigabit combo SFP; one copper port accepts 802.3at PoE power with 1 kV isolation. The two serial ports (RS-422/485 on terminal block, RS-232/422/485 on DB9) collect field equipment, while the dual 12-48 V input and the two SIM slots provide redundancy.
At a glance
- Copper port speed: 10/100/1000 Gigabit Mbps
- Fiber ports (SFP/FX): 4
- Serial interfaces: 1× RS-422/485 (morsettiera) + 1× RS-232/422/485 (DB9)
- SIM slots: 2 slot
- Supply voltage: 12–48 V DC
Technical specifications
| Copper ports (RJ45/M12) | 4 |
|---|---|
| Copper port speed | 10/100/1000 Gigabit Mbps |
| Fiber ports (SFP/FX) | 4 |
| PoE | 802.3at PoE+ |
| Serial interfaces | 1× RS-422/485 (morsettiera) + 1× RS-232/422/485 (DB9) |
| Wireless | 2G/GPRS3G/WCDMA4G/LTE |
|---|---|
| SIM slots | 2 slot |
| Supply voltage | 12–48 V DC |
|---|---|
| Redundant input | Yes |
| Power consumption | 18 W |
| Mounting | DIN Rail MountWall Mount |
|---|---|
| Dimensions | 116.4 × 154 × 170 mm |
| Weight | 2.4 kg |
| IP rating | IP30 |
|---|---|
| Operating temperature | -40–75 °C |
| Storage temperature | -40–85 °C |
| MTBF | 140345.5955 h |
| Electrical safety | EN 60950-1 |
|---|---|
| Certifications | IEC 61850-3 |
| EMC (emission/immunity) | CISPR 32EN 55024EN 55032FCC Part 15BIEC 61000-4-2 ESDIEC 61000-4-3 RSIEC 61000-4-4 EFTIEC 61000-4-5 SurgeIEC 61000-4-6 CSIEC 61000-4-8 PFMF |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| IGMG-P83244GC+-D4G_EU |
