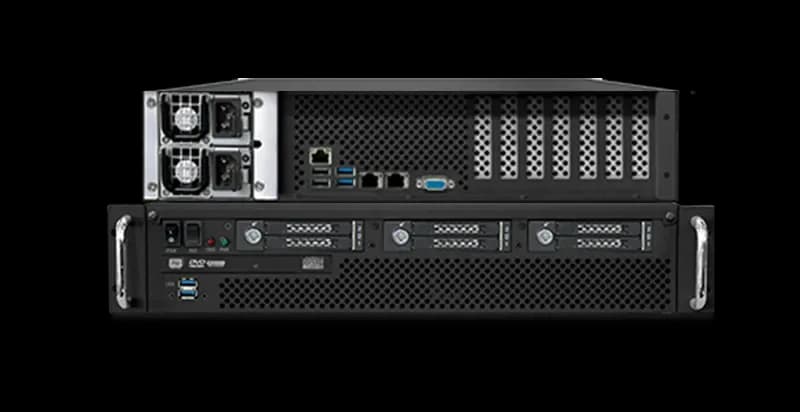

GAP-245RL-S7-SOLO2U Rugged Server
- Manufacturer
GAP is a family of rugged servers and workstations with an aluminum construction, designed for applications that require a robust MIL-GRADE certified computing platform, suitable for operations in critical environments. GAP-245RL-S7-SOLO rugged servers feature single socket 3rd Gen. Intel® Xeon® Scalable Processors (Ice Lake) a balanced architecture that delivers built-in AI acceleration and advanced security capabilities and up to 64 lanes PCI Express Gen 4 per socket to enable higher I/O bandwidth per core. GAP S7 SOLO series rugged servers are MIL-STD-810F qualified for temperature and shock, MIL-STD-167-1A for vibrations and can optionally conform to MIL-STD-461 for EMI/EMC.
At a glance
- Single Socket
- 450mm Depth
- Rear I/O
- Rear PSU
A GOMA ELETTRONICA division
A GOMA RUGGED SOLUTIONS product
The GAP series belongs to GOMA RUGGED SOLUTIONS, GOMA's division for MIL-STD qualified systems. The full datasheet for this model, with configurations and qualifications, lives on its own site.
Visit GOMA RUGGED SOLUTIONSTechnical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| CPU socket count | 1 |
|---|---|
| CPU class | Intel Xeon |
| Processor | 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) max 270W TDP |
| Chipset | C621A |
| Graphics | ASPEED AST2600 BMC |
| TPM | Header (provision) |
| Memory | Up to 2TB ECC RDIMM, DDR4-3200MHz; 8 DIMM slots |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 2 TB |
| ECC support | Yes |
| Storage | Internal: 1x M.2 SATA / NVMe; M-Key, 2280/22110 2x Disk on Module Removable: Up to 6x U.2 NVMe SSD or Up to 9x 2.5” SATA / SAS SSD |
|---|
| Ethernet ports | 1x Dedicated IPMI LAN port 2x GbE with RJ45 connectors |
|---|---|
| Other I/O | Available on the rear: 1 x VGA, 2 x USB 2.0; 2 x USB 3.2, 2 x 10GbE; 1 x IPMI |
| IPMI management | IPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications |
|---|
| Expansion | 2x PCIe 4.0 x16, 1x PCIe 4.0 x8 (in x16 slot), 2x PCIe 4.0 x8 – Low Profile cards |
|---|
| Power input | AC Redundant Power Supply – Optional Single DC Redundant Power Supply – Optional Single |
|---|
| Rack units | 2 U |
|---|---|
| I/O and power layout | Rear I/O and power |
| Dimensions | 483 x 88 x 450 mm |
| Chassis material | Aluminum with surface passivation treatment |
| Mounting | Rack Mount |
| Operating temperature | 0–50 °C |
|---|---|
| Storage temperature | -40–70 °C |
| Cooling | Fan (active) |
| Certifications | MIL-STD-461RoHSREACHMIL-STD-810 |
|---|
| Operating systems | WindowsWindows 10 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
