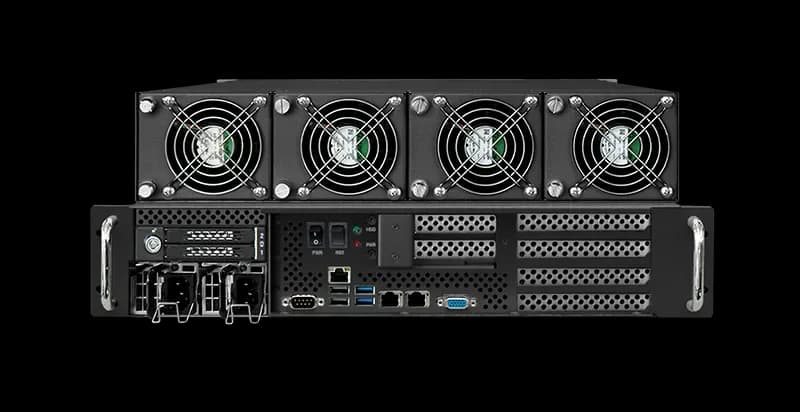

GAP-245P-S8-SOLO2U Rugged Edge Server
- Manufacturer
GAP is a product family of Rugged aluminium Servers and Workstations designed for Edge applications that require a robust MIL-GRADE certified computing platform, suitable for operations in critical environments. The GAP S8 Series Rugged Edge Servers are powered by single and dual socket 5th / 4th Gen Intel® Xeon® Scalable Processors, renowned for their robust architecture with enhanced AI acceleration and advanced security capabilities. Offering improved performance and efficiency, these servers are tailored to meet the demanding requirements of modern computing environments at the Edge. The integrated IPMI services support monitoring, control, and management functions, sending alarm notifications in case of critical events. Built to meet MIL-STD-810F standards for temperature and shock resistance, as well as MIL-STD-167-1A standards for vibration tolerance, GAP Rugged Edge Servers ensure reliable operation under the challenging conditions often found at the Edge. Additionally, they can optionally be configured to comply with MIL-STD-461 standards for EMI/EMC, featuring MIL-grade connectors for either the power input or both the I/O connectors and power supply inputs.
At a glance
- Single Socket
- 450mm Depth
- Front I/O
- Front PSU
A GOMA ELETTRONICA division
A GOMA RUGGED SOLUTIONS product
The GAP series belongs to GOMA RUGGED SOLUTIONS, GOMA's division for MIL-STD qualified systems. The full datasheet for this model, with configurations and qualifications, lives on its own site.
Visit GOMA RUGGED SOLUTIONSTechnical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| CPU socket count | 1 |
|---|---|
| CPU class | Intel Xeon |
| Processor | 5th Gen Intel® Xeon®/ 4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP Up to 270W TDP |
| Chipset | C741 |
| Graphics | 1 Aspeed AST2600 BMC port |
| TPM | Header (provision) |
| Memory | Up to 2TB ECC RDIMM, DDR5-4800MT/s in 8 DIMM slots |
|---|---|
| RAM type | DDR5 |
| Maximum RAM | 2 TB |
| ECC support | Yes |
| Storage | On Board: 1x M.2 NVMe; M-Key, 2280/22110 2x SATA Disk on Module Internal: Up to 1x 2.5” NVMe U.2 / SATA / SAS Removable: Up to 1x 2.5” SAS SSD or Up to 2x U.2 NVMe SSD or Up to 3x 2.5” SATA SSD |
|---|
| Ethernet ports | 1x Dedicated IPMI LAN port 2x 10GbE with RJ45 connectors |
|---|---|
| Other I/O | 1x VGA, 2x USB 3.2, 2x USB 2.0, 2x 10GbE, 1x IPMI, 1x COM (available on the front panel) |
| IPMI management | IPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications |
|---|
| Expansion | 2x PCIe 5.0 x16 slots, FHFL 2x PCIe 5.0 x8 slots, LP |
|---|
| Power input | AC or DC Redundant Power Supply – Optional AC Single |
|---|
| Rack units | 2 U |
|---|---|
| I/O and power layout | Front I/O and power |
| Dimensions | 483 x 88 x 450 mm |
| Chassis material | Aluminum with surface passivation treatment |
| Mounting | Rack Mount |
| Operating temperature | 0–50 °C |
|---|---|
| Storage temperature | -40–70 °C |
| Cooling | Fan (active) |
| Certifications | MIL-STD-461RoHSREACHMIL-STD-810 |
|---|
| Operating systems | WindowsWindows 10 IoTWindows 11 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
