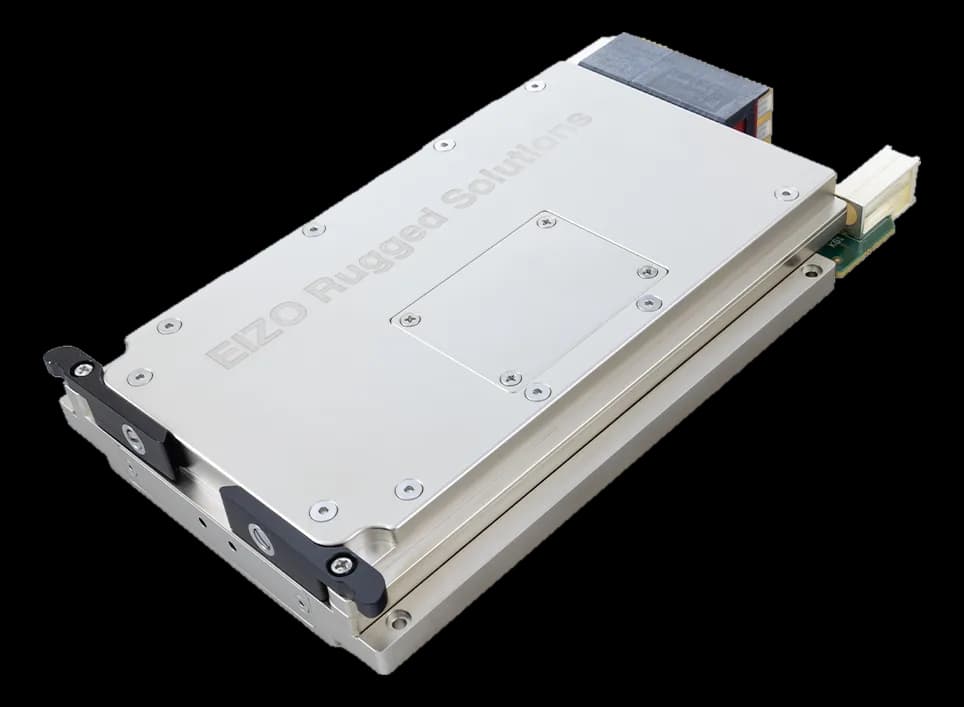

Condor AGX-ORIN64-HPCConduction-cooled 3U VPX board with NVIDIA Jetson AGX Orin
- Manufacturer
Condor AGX-ORIN64-HPC adopts the compute-intensive slot profile 14.6.11 with 1.0” pitch and integrates a GPU with NVIDIA Ampere architecture, two NVDLA v2 deep learning accelerators and an optional DisplayPort output on the front panel.
Networking offers one 100GbE port on the data plane, one 25GbE on the data plane and one 25GbE on the control plane; the 256-bit memory interface reaches a bandwidth up to 205 GB/s, while base storage is a 64GB eMMC 5.1.
Module management takes place over IPMI with dual IPMB and multiple temperature and voltage sensors; the board is qualified to MIL-STD-810, with 40 g shock, and weighs 1223.1 g.
At a glance
- Processor: 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU
- CPU frequency: 2.2 GHz
- CPU cores: 12–48
- Memory: 64 GB LPDDR5 (+ECC) DRAM
- ECC support: Yes
Technical specifications
| Processor | 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
|---|---|
| CPU frequency | 2.2 GHz |
| CPU cores | 12–48 |
| Memory | 64 GB LPDDR5 (+ECC) DRAM |
|---|---|
| ECC support | Yes |
| RAM type | LPDDR5 |
| Storage | 64GB eMMC 5.1 Flash Storage. 8-bit Up to 1TB NVMe (x1 PCIe Gen 4)Up to 1TB NVMe (x1 PCIe Gen 4)(M.2) |
|---|
| Other I/O | 2x NVDLA v2 Deep Learning Accelerators (1.6GHz) |
|---|
| Board function | CPU / Processor |
|---|---|
| Form factor | 3U Eurocard |
| Architecture standard | SOSAVPX (VITA 46)OpenVPX VITA 65 |
| Power consumption | 80–110 W |
|---|
| Weight | 1.223 kg |
|---|
| Operating temperature | -40–85 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
