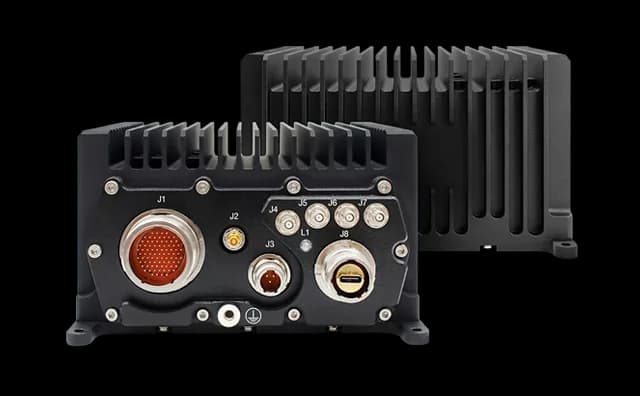

AIX-NXEdge AI Mission Computer
- Manufacturer
The AIX-NX Mission Computer is a rugged, MIL-Spec AI embedded system designed for mission-critical operations in extreme environments, featuring a compact, low-SWaP form factor. Based on the NVIDIA Jetson Orin NX module, it delivers up to 157 TOPS of AI performance with 1024 CUDA cores, 32 Tensor Cores, dual NVDLA v2 accelerators, and 16 GB LPDDR5 memory. This high-performance platform seamlessly integrates advanced AI, deep learning, graphics, and vision capabilities, enabling demanding applications such as autonomous navigation, EO/IR processing, hyperspectral sensor fusion, and 360° situational awareness. Its I/O-rich architecture provides versatile connectivity through 3G-SDI / HD-SDI and NTSC/PAL analog video inputs, a 3G-SDI display output, a GbE port plus a 2.5GbE port, multiple USB interfaces, serial and discrete I/O channels, CAN Bus, audio I/O, and onboard NVMe SSD storage. Engineered to comply with MIL-STD and DO-160 standards and supporting fanless operation, the AIX-NX Mission Computer ensures reliable performance and data integrity in the most demanding vetronics, aerospace, naval, and ground defense applications.
At a glance
- 157 TOPS AI
- 1.75 Kg Ultra Lightweight
- IP65 Ingress Protection
- DO-160G RTCA Qualified
A GOMA ELETTRONICA division
A GOMA RUGGED SOLUTIONS product
The AIX series belongs to GOMA RUGGED SOLUTIONS, GOMA's division for MIL-STD qualified systems. The full datasheet for this model, with configurations and qualifications, lives on its own site.
Visit GOMA RUGGED SOLUTIONSTechnical specifications
| Processor | NVIDIA® Jetson OrinTM NX (157 TOPS / 1024 CUDA® cores / 32 Tensor cores) |
|---|---|
| AI performance | 100-200 |
| AI module | NVIDIA Jetson Orin NX |
| Memory | 16GB LPDDR5 128-bit |
|---|
| Storage | 1× M.2 PCIe Gen4 ×4 (2242 slot, up to 1 TB NVMe SSD) |
|---|
| Ethernet ports | 1× 2.5 GbE LAN + 1x GbE LAN interfaces |
|---|---|
| Serial interfaces | 2× programmable RS-232/422/485 ports |
| Video outputs | 1× 3G-SDI display output |
| Connectors | 2× 2M805 military-style mini circular connectors 1× USB-C military-style connector 5× HD-BNC waterproof connectors |
| Audio | 1× Audio IN (L/R) 1× Audio OUT (L/R) |
| CAN bus | 1× CAN Bus channel |
| Digital I/O | 3× discrete inputs 3× discrete outputs Remote ON/OFF Maintenance RS-232 ports |
| USB ports | 1× USB 3.2 on MIL USB-C connector 3× USB 2.0 on front panel mixed I/O |
| Power input | 28 V nominal (12 – 36 V DC continuous) MIL-STD-704F / DO-160F / MIL-STD-1275D compliant |
|---|---|
| Power consumption | 40–65 W |
| Power protections | Overvoltage (OVP)Surge / TransientOverload / Overcurrent (OCP) |
| Dimensions | 146.3 × 166.5 × 84.5 mm |
|---|---|
| Weight | 1.75 kg |
| Cooling | Fanless |
|---|---|
| Operating temperature | -20–55 °C |
| Storage temperature | -40–80 °C |
| Humidity | 95 % |
| IP rating | IP65 |
| Operating altitude | 7620 m |
| Shock / vibration / free fall | MIL-STD-810H |
| Certifications | MIL-STD-461MIL-STD-810DO-160MIL-STD-704MIL-STD-1275 |
|---|
| Driver & SDK | NVIDIA JetPack SDK (based on Jetson Linux with Ubuntu desktop and Jetson AI Stack) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
