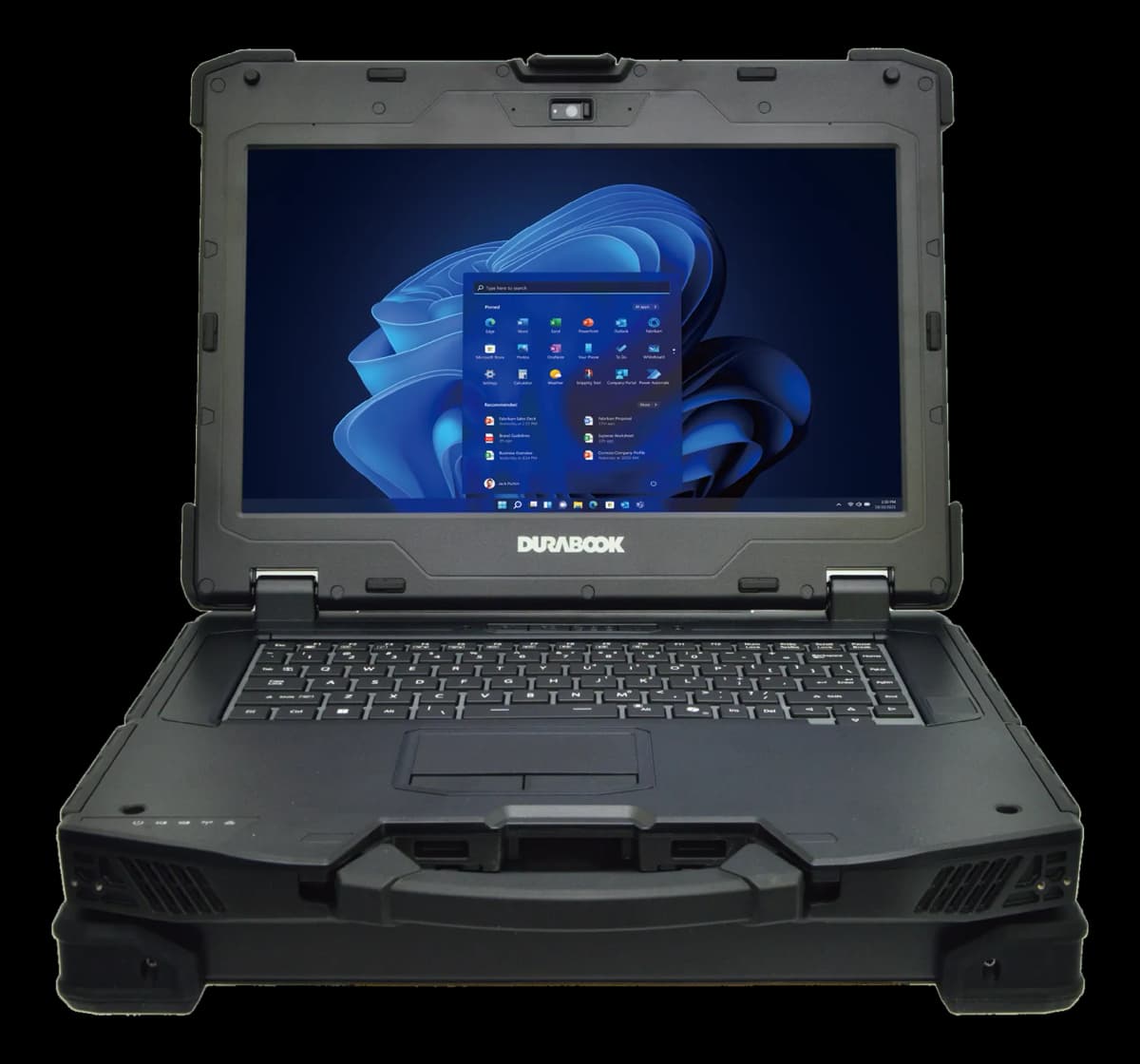

The Z14I-HG is a 14″ fully rugged mobile workstation: Intel Core Ultra Series 1 CPU and, alongside the integrated Intel graphics, an NVIDIA RTX 3500 Ada with 12 GB of GDDR6 for graphics computing in the field.
Computing and memory
- two DDR5 5600 MT/s slots, up to 64 GB;
- 512 GB NVMe PCIe SSD, with two quick-release removable NVMe drives;
- optional 1 or 2 TB SSD, OPAL 2.0 SSD, a second NVMe drive and a third SATA drive.
Display
14″ FHD 1920×1080, 1000+ nit brightness readable in sunlight, PCAP capacitive touch. Integrated 2 MP webcam with shutter; optional 5 MP IR camera for Windows Hello.
Ports
Two Thunderbolt 4 (USB-C), one USB 3.2 Gen2, one USB 3.2 Gen1 and one USB 2.0 Type-A; two Gigabit Ethernet RJ45; two RS-232/422/485 serial ports on 9-pin D-sub; HDMI 2.1 and VGA outputs; microSD; ExpressCard 54; combo audio in/out. Backlit membrane keyboard with two programmable keys (P1/P2).
Wireless
Wi-Fi as standard. Bluetooth, GPS/GNSS, 4G/LTE and 5G optional.
Ruggedness and power
Magnesium alloy chassis, IP66 ingress protection rating, MIL-STD-810 and MIL-STD-461 certifications. Storage temperature from -51 to 71 °C. 356 × 280 × 77 mm, 4.9 kg. Main Li-Ion battery 10.8 V, 6900 mAh, optional second battery of 4700 mAh; 240 W power adapter with AC input 100–240 V. Windows operating system.
When it makes sense
When inference, sensor analysis or 3D modelling must follow the team onto a vehicle or into a base camp, and the data must leave the vehicle on a removable drive, not inside the laptop. Memory, storage and radio modules are configured according to the software to be run.
